Expansion Joint Devices AQUASTOP Type TPM – 11/007

tpm
tpm-montazhnaya-shema-1
tpm-montazhnaya-shema-2

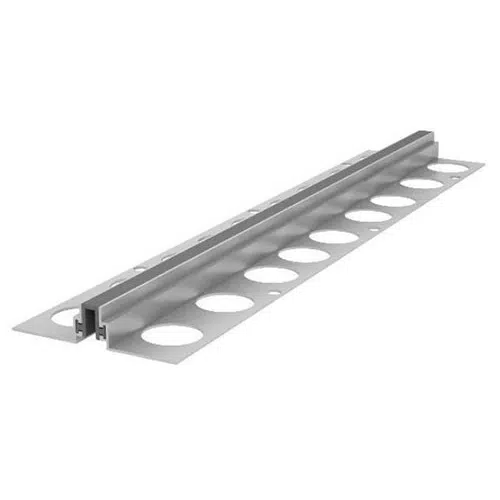

Expansion Joint Device AQUASTOP TPM-11/007 is a 3-meter long embedded expansion joint designed for joint installation. This device is suitable for both indoor spaces and open areas. Engineered to compensate for deformations in horizontal and vertical structures (floors, walls, ceilings). Reduces stresses caused by shrinkage and temperature fluctuations. Withstands truck loads.

Displacement, mm

Compression: 2
Tension: 2
Shear: 1

426,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP Type TPM — 11/007 — designed for protecting joints in horizontal and vertical structures (floors, walls, ceilings) in areas with high pedestrian traffic: shopping centers, office spaces. Joint width — 11 mm. Suitable for joints in floor structures with thickness — 7 mm. Guide rails are installed using the embedded method. The device consists of perforated aluminum guide rails and a flexible profiled compensator made of thermoplastic elastomer (TPE) in the center.
Technical advantages:

  • Material: aluminum guide rails (GOST standard), compensator — wear-resistant TPE.
  • Strength: engineered for mechanical and operational loads.
  • Corrosion resistance: resistant to moisture, temperature fluctuations, aggressive environments.
  • Durability: aluminum is corrosion-resistant, the compensator can be easily replaced without disassembling the profile.

Installation:

  • Installation method: embedded, with fixation of guide rails into concrete base.
  • Fastening: 3 m long aluminum pressure strips, anchors or dowels.
  • Additionally: angular execution is available for complex joints.

Additional information

Compensator Material

TEP
Country of manufacture

Russia
Profile Type

Straight
Installation Type

Embedded
Load - MPa

0,60
A (Joint Width), mm

7
B (Insert Width), mm

9
C (Profile Width), mm

64
Profile Height, mm

11

Installation Guidelines for AQUASTOP® TPM Expansion Joint Devices

  1. Perform work at temperatures between +5°C and +30°C.
  2. Prepare the base: cleaning + leveling (if necessary).
  3. Install beacons starting from the reference point near the wall.
  4. Create expansion gap (≤10 mm) with damping tape around the perimeter.
  5. Begin tile installation from expansion joints. Pre-moisten the back side of tiles.
  6. For TPM-11/007 devices:
    • Tile thickness 7-8 mm;
    • Adhesive thickness 4-5 mm.
  7. For TPM-14/012 devices:
    • Tile thickness 8-10 mm;
    • Adhesive thickness 5-7 mm.
  8. Apply and level adhesive with a notched trowel.
  9. Assemble the device by embedding the guides into the adhesive.
  10. Perform tile installation.
  11. Fill the gap (2 mm) between the device and tiles with polyurethane sealant.

⚠️ Important! Anchor fasteners are not permitted for installation.

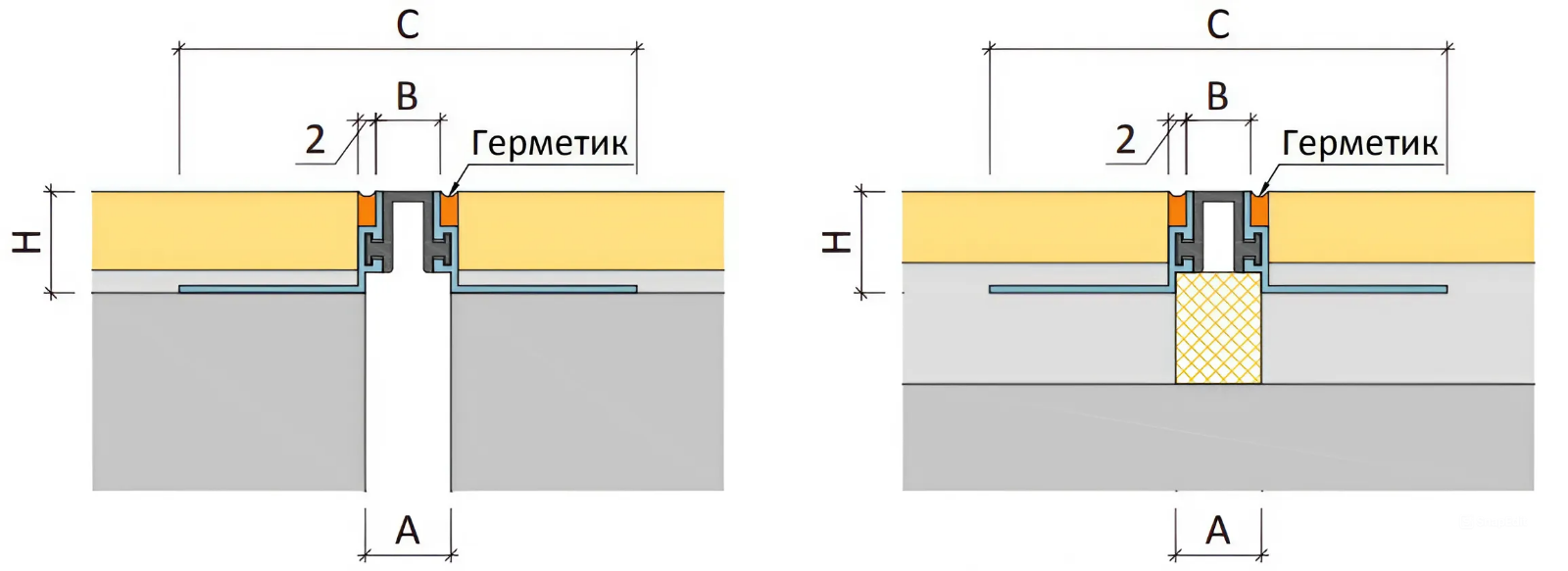

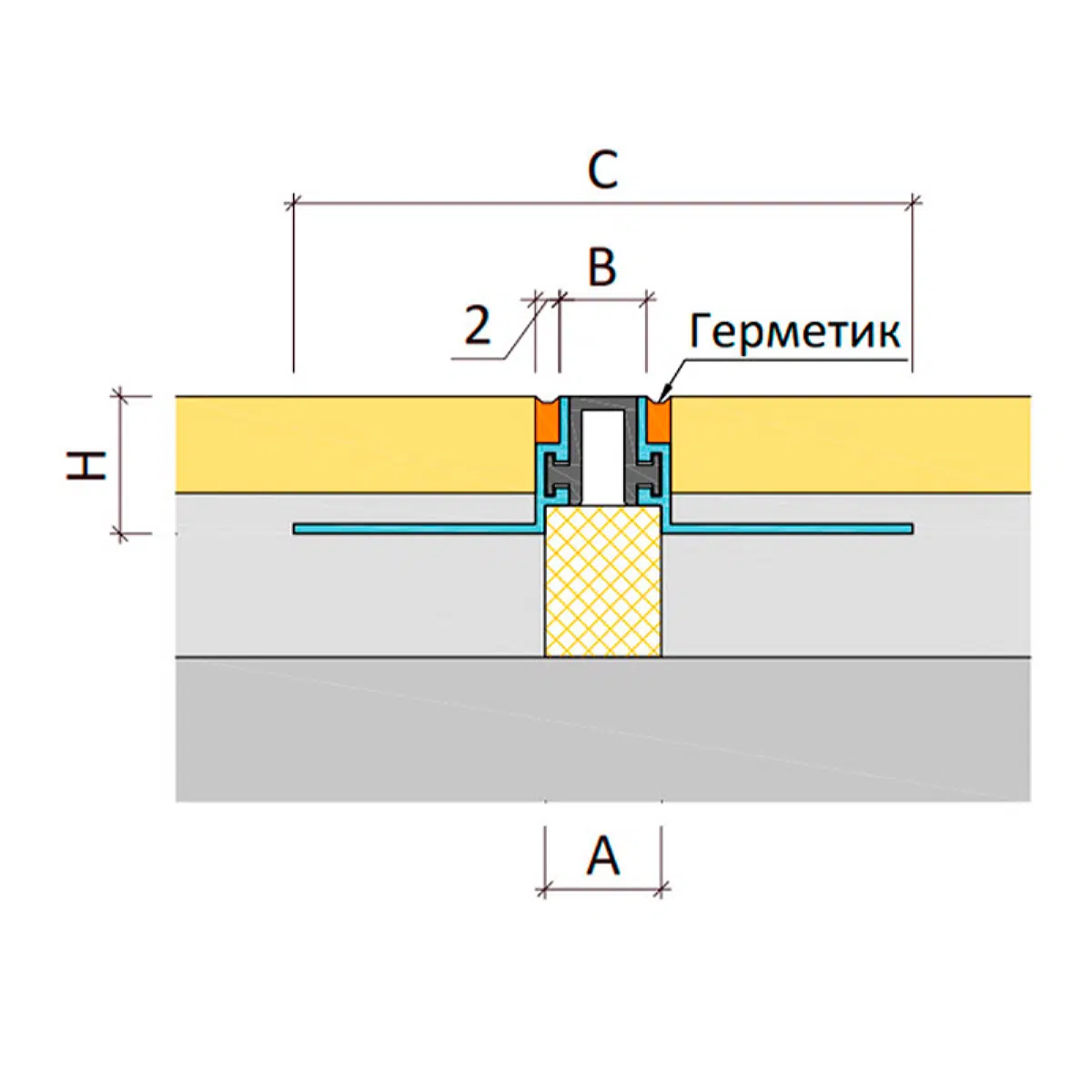

TPM installation diagram



General requirements for all types:
- Compliance with SP 71.13330-2017;
- Use of materials specified in the project.

For deviations from installation conditions - consult with OOO TD "GYDROMIX".

Download Files for AQUASTOP® TPM Expansion Joint Devices

PDFDownload Aquastop Product Catalog Part 2: Expansion Joint Devices
PDFDownload AQUASTOP TPM Device Specifications
